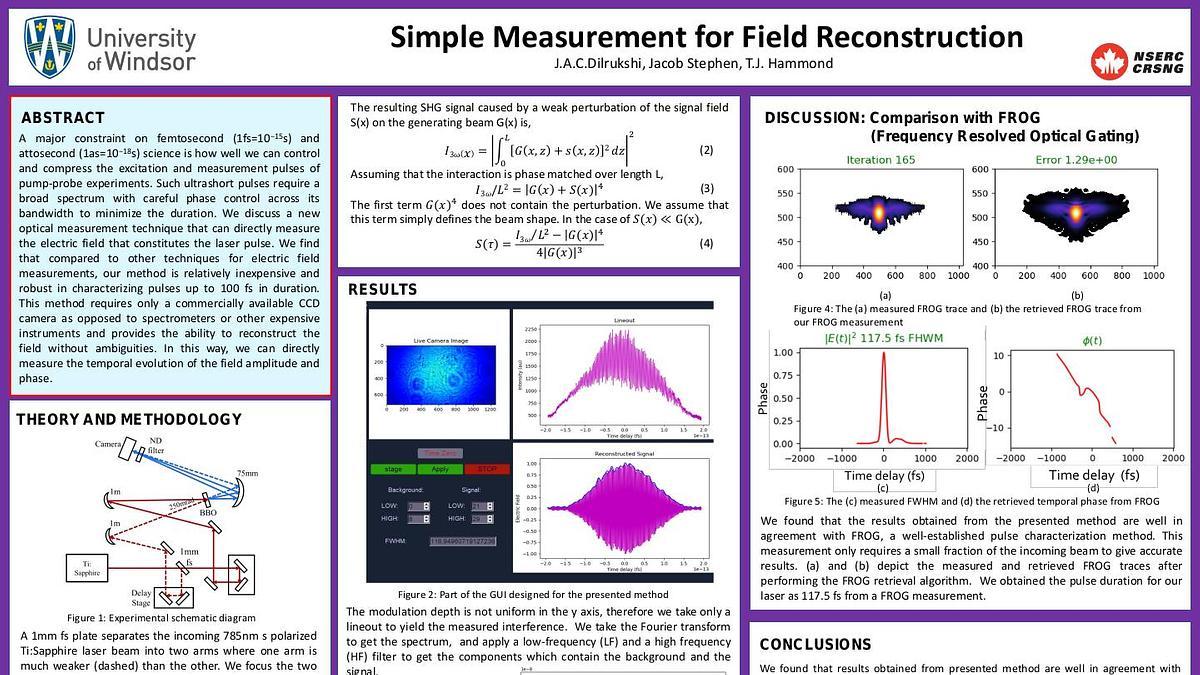

Simple Measurement for Field Reconstruction

The temporal resolution of pump-probe experiments is determined by the duration of the excitation and measurement pulses. A major constraint on femtosecond ($1$ fs = $10^{-15}$ s) and attosecond ($1$ as = $10^{-18}$ s) science is how well we can control and compress these pulses. However, such ultrashort pulses require a broad spectrum with careful phase control across its bandwidth to minimize the duration. The temporal characterization of these pulses is crucial in establishing ultrafast experiments. For this reason, several pulse characterizing techniques have been developed, each with their own strengths and weaknesses [1].

In this paper, we discuss a new optical measurement technique that can directly measure the electric field that constitutes the laser pulse. We find that compared to other techniques for electric field measurements, our method is relatively inexpensive and robust in characterizing pulses up to 100 fs in duration. This method requires only a commercially available CCD camera as opposed to spectrometers or other expensive instruments and provides the ability to reconstruct the field without ambiguities [2]. In this way, we can directly measure the temporal evolution of the field amplitude and phase [3]. We find that the measurement is in good agreement with established characterization techniques.

References

[1] J. C. Diels and W. Rudolph. Ultrashort Laser Pulse Phenomena, chapter Diagnostic Techniques,pages 452–466. Elsevier, 2006.

[2] T. J. Hammond, A. Korobenko, Y. Naumov, M. Villeneuve, P. B. Corkum and D. H. Ko. Near-field imaging for single-shot wave form measurements.Journal of Physics, 51, February 2018

[3] E. Goulielmakis, M. Uiberacker, R. Kienberger, A. Baltuska, V. Yakovlev, A. Scrinzi, T. West-erwalbesloh, U. Kleineberg, U. Heinzmann, M. Drescher and F. Krausz. Direct measurement of light waves.Science, 305(5688):1267–1269, August 2004.

CAP Virtual Congress 2021

Simple Measurement for Field Reconstruction

pulse characterization

pulse duration

ultrashort pulse

**WELCOME TO THE 2021 CAP VIRTUAL CONGRESS UNDERLINE PLATFORM**

The CAP staff and our organizing and program committees are pleased to welcome you to our 2021 Congress filled with plenary talks, technical sessions/talks, student presentations and competition sessions, workshops, and several symposia offered by the CAP divisions and its partners.

You will also have opportunities to network with other delegates through the Gathertown platform accessed by selecting the lounge or posters button on the left.

Registered delegates should use the schedule button to call up the details of the session/event they wish to attend.  Each sessions includes a link to access the online platform where the event is taking place, either within Underline or through other Congress-related Zoom meetings.

Invited speaker talks are identified with an (I), and student competitors include a (G*) or (U*) to identify graduate or undergraduate presenters.

Please take the time to check out the information about our sponsors and exhibitors, request further information, or leave a note of thanks for their support.

General information about the Congress can be found on the CAP website Congress pages at https://www.cap.ca/congress/2021.

Looking for a specific talk?   A full searchable list is available on our Indico Congress site at https://indico.cern.ch/event/985448/contributions/

We look forward to sharing this exciting week with you!


poster

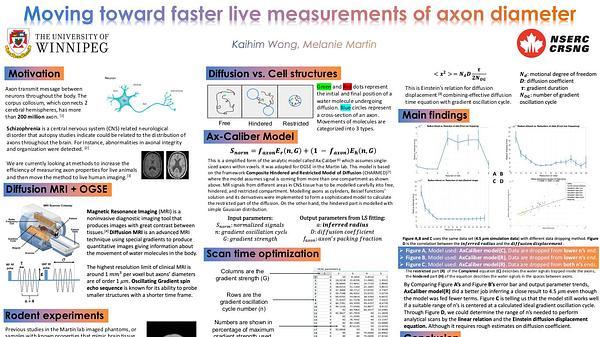

Autopsy studies indicate that the distribution of axons throughout the brain could differ in brains with and without schizophrenia. MRI has inferred axon diameters and distribution in the brain, typically for axons larger than 5 μm in diameter. The goal of this work is to modify these methods to adapt oscillating gradients (OG) to target small axons (1 to 2 μm range) which constitute the majority of cortical connections and shorten the data acquisition time so that the method can be used to measure axon diameters in *vivo*.
Methods to determine micron-sized axon radii using oscillating gradients were too time-consuming for in *vivo* mouse imaging. The methods use many gradient frequencies, and a geometric model called AxCaliber which uses intracellular and extracellular compartments. Through simulations, we found that fewer gradient frequencies for data provided a good fit to the intracellular model, and in some cases, fewer frequencies led to a better fit to the model than more frequencies. A moderate correlation was found between the predicted axonal radius from the model and the actual axonal radius used in the simulations. In conclusion, reducing the number of gradient frequencies and gradient strengths appears to be possible, in theory, to reduce the imaging time by a factor of 4.16 without a significant change in the precision of the inferred axon radii. The method proposed here requires *a priori* knowledge of the desired cell sizes to be inferred. Imaging data, as well as electron microscopy data, need to be collected after reopening the lab after the pandemic to verify the theoretical predictions. This work is the first step to reducing the imaging time so that OG can be used with the AxCaliber model to infer 1-2 μm axon sizes.
The authors wish to acknowledge funding from Mitacs and NSERC.

Moving toward faster measurements of micron-sized axon diameters in vivo

A prototype medical device has been developed and built at Western University to image adolescents with hemophilic arthropathy. The device consists of a plastic cylindrical tub able to rotate freely about a base plate. A 10 MHz linear array ultrasound transducer by Canon Medical Systems is mounted to the inside of the tub pointed toward its center. The tub is filled with water to act as a medium between the ultrasound transducer and the skin. The leg or arm is fixed, while a clinical ultrasound probe rotates over 360 degrees. 2D US images are recorded every 0.5 degrees, and reconstructed into a 3D volume in an inverse fan geometry. The 3D image provides a viewpoint that is unreachable in conventional 2D ultrasonography. The prototype design, study protocol workflow, and preliminary results will be presented; specifically showing corresponding anatomical landmarks between 3D ultrasound and MR images. The future work for the study is a clinical trial at SickKids Hospital in Toronto; whereby, ultrasound / MRI data from each subject will be viewed by two experienced musculoskeletal radiologists who are blinded to the other aspects of the study. Interpretations from both modalities will gauge the feasibility of this approach for use in imaging of hemophilic arthropathy in target joints.

Multi-Modality Comparison of Wrist and Ankle joints: A Feasibility Study

Laser-induced breakdown spectroscopy (LIBS) is a laser-based spectrochemical technique that allows a near-instantaneous measurement of the elemental composition of a target by making time-resolved spectroscopic analyses of laser-induced ablation plasmas. Utilizing nanosecond laser pulses and a broadband high-resolution Echelle spectrometer, high signal-to-noise optical emission spectra can be obtained from almost any desired target.

When the ablation target contains bacterial cells, the inorganic elements present in the bacterial cells (phosphorous, magnesium, calcium, and sodium) can be used to discriminate the bacteria on the basis of their atomic emission spectrum alone. Currently, we deposit bacterial cells onto a nitrocellulose filtration medium by centrifuging very low titer liquid specimens through a custom-fabricated centrifuge tube insert device. Prior to centrifugation, the bacteria cells are obtained by swabbing abiotic surfaces upon which a known number of bacteria cells have been deposited. The cells are then shaken off the disposable pathology swabs into a water suspension in a vortex mixing instrument.

Spectra from five different bacterial pathogens and pathogen surrogates (Staphylococcus epidermidis, Escherichia coli, Mycobacterium smegmatis, Pseudomonas aeruginosa, and Enterococcus faecalis) and sterile water control specimens have been obtained along with spectra from sterile deionized water control specimens.

This presentation will detail our efforts to identify and optimize chemometric algorithms for the autonomous classification of unknown spectra. Algorithms such as principal component analysis (PCA), discriminant function analysis (DFA), partial least squares discriminant analysis (PLSDA), and artificial neural networks (ANN) have been investigated. Rates of sensitivity and specificity have been determined and will be presented for the various techniques. Efforts to use chemometric algorithms to discriminate low-titer suspensions from blank water specimens and thus calculate limits of detection and limits of identification will also be discussed.

Quantification of Sensitivity and Specificity in a Laser-Induced Breakdown Spectroscopy Diagnostic Assay for Pathogenic Bacteria Detection and Classification

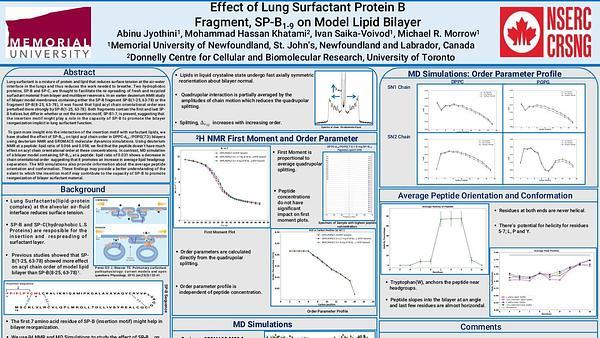

**Effect of Lung Surfactant Protein B Fragment, SP-B1-9 on Model Lipid Bilayer.**
