The final goal of our project is to develop a device that acts as a bypass for restoring neuronal signals in regions with spinal cord injuries&lt;sup&gt;1&lt;/sup&gt;. To detect such signals, a magnetic field sensor can be employed, placed near the spinal cord. This in turn sets several constraints for the sensor itself. It must be of reduced size, operate at zero or very small external biasing field and achieve low detectivity at low frequency, while operating at body temperature (310K). The detectivity of a magnetic sensor is determined both by its sensitivity and its intrinsic noise. If the target signal is in the low frequency region, which is the case for biomedical applications, Anisotropic Magnetoresistance (AMR) sensors become competitive when compared to Tunnelling Magnetoresistance (TMR) and Giant Magnetoresistance (GMR) technologies, due to its low 1/f noise, even if they do not reach same sensitivity values. Additionally, AMR sensors can be of much simpler fabrication, not requiring the stacking of several thin films.&lt;br/&gt;We will present results obtained with AMR sensors made of 30 to 60 nm thick epitaxial La&lt;sub&gt;2/3&lt;/sub&gt;Sr&lt;sub&gt;1/3&lt;/sub&gt;MnO&lt;sub&gt;3&lt;/sub&gt; thin films, which present low intrinsic noise&lt;sup&gt;2&lt;/sup&gt;, deposited on 4° , 6° or 8° vicinal SrTiO&lt;sub&gt;3&lt;/sub&gt; (STO) substrates and etched in a Wheatstone Bridge design. This design is also referenced in literature as Planar Hall Effect Bridge&lt;sup&gt;3&lt;/sup&gt; (PHEB). Pulsed Laser Deposition (PLD), photolithography and Ion Beam Etching (IBE) were used for in-lab samples fabrication. The use of a vicinal substrate, which presents a surface miscut angle regarding the crystallographic plane, was selected so as to induce uniaxial anisotropy and an easy magnetic axis along the step edges&lt;sup&gt;4&lt;/sup&gt;. The measured AMR curves can be compared to the expected behaviour when considering the Stoner-Wohlfarth model for coherent magnetization reversal. This coherent magnetization reversal process was checked by Magneto-optical Kerr imaging (see figure 1).&lt;br/&gt;In order to achieve a higher sensitivity, thus lower detectivity, PLD deposition was performed at different temperatures, which leads to a change in thin film Curie temperature Tc and therefore affects the anisotropy field Ha. A clear reduction in Ha can be seen when changing the deposition temperature from 730° C to 680°C. The anisotropy field depends also on the angle of vicinality, the smaller the angle the smaller the anisotropy field. For vicinal angles ranging from 4° to 8°, the uniaxial anisotropy of the film is preserved. Changing the temperature deposition or the vicinality does not degrade the 1/f noise of the films. The so far achieved detectivity @ 310K is as low as 1nT/Hz&lt;sup&gt;1/2&lt;/sup&gt; at 1 Hz and 300 pT/Hz&lt;sup&gt;1/2&lt;/sup&gt; at 1 kHz in a single-layer sensor (see figure 2) without using performance enhancing techniques such as focusers.

**References:**

1 http://www.byaxon-project.eu/ FET Open 2017-2020&lt;br/&gt;2 L Méchin et al, J. Phys. D: Appl. Phys.46, 202001 (2013), https://doi.org/10.1088/0022-3727/46/20/202001&lt;br/&gt;3 A.D. Henriksen et al, Appl. Phys. Lett. 97, 013507 (2010), https://doi.org/10.1063/1.3460290&lt;br/&gt;4 P Perna et al Adv. Funct. Mater., 27, 1700664 (2017), https://doi.org/10.1002/adfm.201700664

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/ea6a5b53513212ecfb41390187c4856c.jpg)
Figure 1: MOKE Imaging of the magnetization reversal process in the AMR Wheatstone bridge sensor and local magnetization loop

![](https://assets.underline.io/uploads/markdown_image/1/image/c7f186f0d7d8cfc247aaaec8b6576132.jpg)
Figure2: Detectivity spectrum at 310K as a function of the polarization of the AMR Wheatstone bridge

INTERMAG 2021

 Sub-nT resolution of single layer sensors based on the AMR effect in single layer La2/3Sr1/3MnO3 thin films

The 15th Joint MMM-INTERMAG Conference (2022 Joint) is sponsored jointly by AIP Publishing and the IEEE Magnetics Society. Members of the international scientific and engineering communities interested in recent developments in fundamental and applied magnetism are invited to attend and contribute to the technical sessions. The technical program will include invited and contributed papers in oral and poster sessions, invited symposia, a plenary session, and an evening session, with about 1500 presentations overall. This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

The 2022 Joint Conference will offer both in-person and prerecorded on-demand content.

For tickets to the event, please register at the following link: https://magnetism.org/register

Please register for the Joint MMM-Intermag conference to join the event.

2022 Joint MMM-INTERMAG

This Conference provides an outstanding opportunity for worldwide participants to meet their colleagues and collaborators and discuss developments in all areas of magnetism research.

The final goal of our project is to develop a device that acts as a bypass for restoring neuronal signals in regions with spinal cord injuries1. To detect such signals, a magnetic field sensor can be employed, placed near the spinal cord. This in turn sets several constraints for the sensor itself. It must be of reduced size, operate at zero or very small external biasing field and achieve low detectivity at low frequency, while operating at body temperature (310K). The detectivity of a magnetic sensor is determined both by its sensitivity and its intrinsic noise. If the target signal is in the low frequency region, which is the case for biomedical applications, Anisotropic Magnetoresistance (AMR) sensors become competitive when compared to Tunnelling Magnetoresistance (TMR) and Giant Magnetoresistance (GMR) technologies, due to its low 1/f noise, even if they do not reach same sensitivity values. Additionally, AMR sensors can be of much simpler fabrication, not requiring the stacking of several thin films. We will present results obtained with AMR sensors made of 30 to 60 nm thick epitaxial La2/3Sr1/3MnO3 thin films, which present low intrinsic noise2, deposited on 4° , 6° or 8° vicinal SrTiO3 (STO) substrates and etched in a Wheatstone Bridge design. This design is also referenced in literature as Planar Hall Effect Bridge3 (PHEB). Pulsed Laser Deposition (PLD), photolithography and Ion Beam Etching (IBE) were used for in-lab samples fabrication. The use of a vicinal substrate, which presents a surface miscut angle regarding the crystallographic plane, was selected so as to induce uniaxial anisotropy and an easy magnetic axis along the step edges4. The measured AMR curves can be compared to the expected behaviour when considering the Stoner-Wohlfarth model for coherent magnetization reversal. This coherent magnetization reversal process was checked by Magneto-optical Kerr imaging (see figure 1). In order to achieve a higher sensitivity, thus lower detectivity, PLD deposition was performed at different temperatures, which leads to a change in thin film Curie temperature Tc and therefore affects the anisotropy field Ha. A clear reduction in Ha can be seen when changing the deposition temperature from 730° C to 680°C. The anisotropy field depends also on the angle of vicinality, the smaller the angle the smaller the anisotropy field. For vicinal angles ranging from 4° to 8°, the uniaxial anisotropy of the film is preserved. Changing the temperature deposition or the vicinality does not degrade the 1/f noise of the films. The so far achieved detectivity @ 310K is as low as 1nT/Hz1/2 at 1 Hz and 300 pT/Hz1/2 at 1 kHz in a single-layer sensor (see figure 2) without using performance enhancing techniques such as focusers.

**References:**

1 http://www.byaxon-project.eu/ FET Open 2017-2020 2 L Méchin et al, J. Phys. D: Appl. Phys.46, 202001 (2013), https://doi.org/10.1088/0022-3727/46/20/202001 3 A.D. Henriksen et al, Appl. Phys. Lett. 97, 013507 (2010), https://doi.org/10.1063/1.3460290 4 P Perna et al Adv. Funct. Mater., 27, 1700664 (2017), https://doi.org/10.1002/adfm.201700664

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/ea6a5b53513212ecfb41390187c4856c.jpg)
Figure 1: MOKE Imaging of the magnetization reversal process in the AMR Wheatstone bridge sensor and local magnetization loop

![](https://assets.underline.io/uploads/markdown_image/1/image/c7f186f0d7d8cfc247aaaec8b6576132.jpg)
Figure2: Detectivity spectrum at 310K as a function of the polarization of the AMR Wheatstone bridge

technical paper

INTERMAG 2021 Welcome Video




<figure class="video_container">
 <iframe src="https://screencast-o-matic.com/player/crflqFVnUpZ?v=6&ff=1&title=0&controls=1" width=640 height=360 frameborder="0" allowfullscreen="true"> </iframe>
</figure>

Want to buy a ticket?

Register for INTERMAG 2021 here

[![](https://assets.underline.io/uploads/markdown_image/1/image/17ce76e7960db633258024eef8d6da7f.png)](https://intermag.org/register)

Got your ticket, but still can’t access the event?

Contact us and our team will look into it.

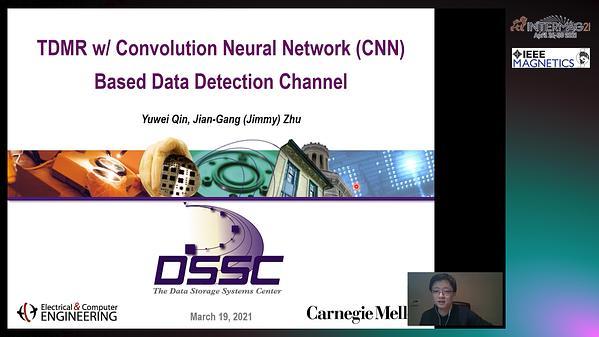

Two-dimensional magnetic recording (TDMR) with laterally-displaced multiple read heads has been developed to alleviate the impact of inter-track interference (ITI) and track edge effects. However, the cross-track (XT) position of the displaced 2nd head varies significantly with the skew angle of head assembly from ID to OD across disk radius [1]. As a result, each disk platter is divided into hundreds of groups of sectors, or zones, to accommodate the skew angle variations. The 2-dimentional equalization technique used in conventional data detection channels requires different channel parameters at different skew angles/zones for channel optimization, and the number of different channel parameter sets across the disk platter are in hundreds. Furthermore, resulting performance gain is further diminished by random fluctuations such as non-repeatable disk runout. In this situation, if we employ machine learning technique on TDMR data detection, one could imagine the possibility of achieving optimal performance in resolving ITI and track edge effects across the entire disk surface while using “learning” to replace relatively complex parameterization of physical modeling. In our previous work, we have developed deep neural network (DNN) for disk drive data detection channels with performance (detection error-rate vs. signal-to-noise ratio) slightly more superior than the state-of-the-art disk drive channels [2,3]. In the work presented here, we train a convolution neural network (CNN) in TDMR system to detect data under a wide range of ITI from different head skew angles. We demonstrate that in the medium noise dominant situation, CNN can learn all ITI in the training dataset and completely recover ITI-free BER without any physical modeling. Our eventual goal is to explore if we can train a single CNN detector to learn and optimize for all head skew angles/zones automatically, thereby lifting the complexity of designing different channel parameter sets at each head skew angle. The recorded tracks and CNN detection scheme are shown in Fig. 1. Two adjacent data tracks are written with random data and arbitrary phase. The width of the track is denoted TW, and no erase-band nor transition curvature is included. Two XT overlapped heads of width greater than TW are used. Here we simplify the modeling and assume each head only captures signals under its XT coverage. Since the relative positions of head-1 and head-2 are locked, we characterize ITI of the reader array with a single variable: the ratio between head-1 coverage of Track-II (Δx1) versus the track width (TW): δ1=Δx1/TW. Here we assume the ITI stays fixed within each zone, and different zones will have different ITI. In this work, we only investigate the medium noise dominated situation: the jitter noise is modeled as the uncertainty of the transition locations following a Gaussian distribution. Since both heads “see” the same magnetic patterns from the two tracks, the jitter noise is correlated noise. A CNN is used as the data detector in this work. It receives signals from both heads as input, and we only train it to detect data for Track-I. The rest of the parameters are listed in Fig. 1 caption. To simulate reading data at different skew angles, we evaluate the CNN detection BER with signals of 11 different ITI from δ1=0.2 to 0.8 as in Fig. 2. The black dashed line benchmarks the ITI-free BER. For the blue curve, the CNN detector is trained using signals from one skew angle/zone with a fixed ITI, δ1=0.5 . In this case, CNN can only eliminate the trained ITI, and the detection accuracy degrades significantly whenever the testing ITI is different. In contrast, the red curve plots the BER when we train the CNN using signals with mixed ITI same as the testing dataset. This time CNN can successfully eliminate ITI for all testing head skew angles/zones. Our results suggest that CNN has the capacity to learn very complicated correlations and is solely data-driven. With the learning process, the CNN-based ML channel presented here is capable of resolving the interference from ITI infested signals, automatically rejecting them, and arriving at correct detection. This approach is fundamentally different from the conventional channel design that relies on sophisticated physical modeling and channel parametrization. In addition, the fact that a single CNN can learn a wide range of ITI states that it can optimize the channel performance for head skew angles using a single CNN eliminating the need to use multiple channel parameter sets. Not only this machine learning channel can eliminate the complex physical characterization process required for conventional approach, more importantly, the TDMR performance gain can be fully realized without compromising. The potential of fully eliminating ITI also presents the possibility to have reader width wider than track width which could be critically important as track pitches in HDDs continue to decrease.

**References:**

[1] Suzuto R, Nakamura Y, Osawa H, et al. Effect of reader sensitivity rotation in TDMR with head skew. IEEE Transactions on Magnetics, 2016, 52(7): 1-4. [2] Qin Y, Zhu J G. Deep Neural Network: Data Detection Channel for Hard Disk Drives by Learning. IEEE Transactions on Magnetics, 2020, 56(2): 1-8. [3] Qin Y, Zhu J G. Automatically Resolving Inter-Track Interference with Convolution Neural Network Detection Channel in TDMR. IEEE Transactions on Magnetics, 2020.

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/1636e831501326557b33b2a856085d21.jpg)
CNN detector in TDMR. The heads have DT sensitivity of PW50/bit-length = 2.5. The green(yellow) signals are from head-1(head-2), and they are sampled 1 bit/period. The jitter width is assumed 1.4nm in this work. The CNN channel has 3 hidden layers (blue) with 50 filters each. The kernel sizes are 3-3-3-1. ReLU is used as the non-linear activation function, and cross-entropy is the loss function.

![](https://assets.underline.io/uploads/markdown_image/1/image/3a69ad272e492b195d37c70a85e1048b.jpg)
Detection BER at different zone/ITI. Black dashed curve: ITI-free detection BER. Blue: CNN is only trained with signals of fixed ITI δ1=0.5 . Red: CNN is trained with signals with 11 different ITI (same as the testing dataset).

 Enable TDMR Gain with Convolution Neural Network Based Machine Learning Algorithm

I. INTRODUCTION In the head-disk interface (HDI) of heat-assisted magnetic recording (HAMR), a laser is employed over the read/write area to locally heat the recording media to its Curie temperature to facilitate data writing. During this process, the lubricant on the disk undergoes harsh cyclic thermal processes so that the lubricant is partially depleted by the laser [1]. Thus, the lubricant thickness is locally reduced during the writing, but afterwards it recovers gradually due to lubricant reflow [2]. In this study, the effect of the lubricant thickness on the nanoscale heat transfer across the HDI is studied using a thermal fly-height control (TFC) heater and an embedded contact sensor (ECS). The dR/dP, the rate of change in the ECS resistance with respect to the TFC power, was measured to indicate the HDI heat transfer coefficient [3]. It is demonstrated that the ECS is a good thermal sensor for the lubricant thickness through the contact cooling effect. II. EXPERIMENT SETUP Experiments were performed on a component-level spin-stand stage. When flying over the HAMR disks with the lubricant thickness from 8.0 Å to 12.5 Å, the TFC heater was energized until head-disk touchdown occurred. During the touchdown process, the ECS, biased with a constant DC current, was used to monitor the head temperature. An acoustic emission (AE) sensor was used to detect the head-disk contact. The ECS resistance versus the TFC power relation (R-P) was measured. Then the R-P curve’s derivative, dR/dP, was obtained to indicate the head-disk nanoscale heat transfer. III. RESULTS AND DISCUSSION Fig. 1 shows the results of dR/dP versus backoff TFC power using different ECS bias currents, where zero backoff power is the TFC power at the head-disk contact onset detected by the AE sensor. The figure presents the contact cooling effect around +1 mW backoff TFC power, which appears as the local minimum. It is seen from the figure that the cooling effect is stronger with a higher ECS bias current, since the hotter ECS undergoes a larger temperature drop when touching the rotating disk surface. Thus, the ECS biased with a higher current delivers better sensitivity for the experiments. Fig. 2 shows the dR/dP curves for the disks with the lubricant thickness varying from 8.0 Å to 12.5 Å. As the lubricant thickness increases, the dR/dP local minimum rises and hence the contact cooling effect weakens. Therefore, the lubricant behaves as a thermal barrier to the head-disk heat transfer and its effect can be quantified by the ECS. IV. CONCLUSIONS In this digest, touchdown experiments are introduced to quantify the effect of the lubricant on the nanoscale heat transfer at the head-disk interface. The experimental results show that a higher ECS bias current ensures a better sensitivity for the experiments and that the lubricant layer weakens the head-disk heat transfer. Taking advantage of this effect, the ECS can be further used to measure the local lubricant thickness depletion and reflow during HAMR operations.

**References:**

[1] M. Kryder, E. Gage, T. McDaniel, Proc. IEEE, 96(11), 1810-1835 (2008). [2] H. Wu, A. Mendez, S. Xiong, J. Appl. Phys., 117(17), 17E310 (2015). [3] N. Zuckerman, J. Kiely, M. Anaya-Dufresne, IEEE Trans. Magn., 55(3), 1-5 (2018).

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/90768b5c5efe6453870c0a23b326801e.jpg)
Fig. 1. The dRdP versus backoff TFC power using different ECS bias currents.

![](https://assets.underline.io/uploads/markdown_image/1/image/3d1ddabf5d889ce0eb44baa841bc9121.jpg)
Fig. 2. The dRdP versus backoff TFC power using different lubricant thicknesses (ECS bias: 2.50 mA).

 Effect of Lubricant Thickness on the Nanoscale Heat Transfer at the Head-Disk Interface

The current exponential growth in data in combination with the slow-down in areal density and cost scaling of hard disk drives (HDDs) is fueling demand for cost effective storage technology. Magnetic tape storage has a very low total cost of ownership and is suited for the storage of less frequently accessed data where tape's higher access latency is an acceptable trade-off for the reduced cost. Today's best of breed tape drives provide a 20 TB native cartridge capacity at an areal density of 11.7 Gbit/in2. This is about two orders of magnitude lower than the areal density of state-of-the-art HDDs and implies that tape has significant potential for continued scaling. This is in line with the projections of the Information Storage Industry Consortium (INSIC) Tape Roadmap that projects a 34% annual growth in tape areal density leading to a predicted 278 Gb/in2 in 2029 [1]. In this work we describe a tape areal density demonstration using a prototype perpendicularly oriented strontium ferrite (SrFe) tape that shows the potential of recording at 317 Gbit/in2. Key properties of the media include: a particle volume of 950 nm3, a particle coercivity of Hc=208 kA/m, a perpendicular squareness ratio of 0.87, a surface roughness Ra=1.1 nm and Rz=17 nm measured by AFM, and a tape thickness of 4.3 μm. We investigated the recording potential of the SrFe media by writing repeating 255-bit pseudo-random binary sequences (PRBS) at linear densities ranging from 500 to 768 kbpi. The data was read back using a 29 nm side shielded tunneling magneto resistive (TMR) reader from an HDD and the captured readback signal was processed offline using a software read channel. Fig. 1(a) shows the average SNR of the captured data measured at the input of an EPR4 detector and plotted versus linear density. Fig. 1(b) plots the byte-error rate (BER) versus linear density, obtained by processing the data using three detection algorithms: 1) 8-state EPR4 detection, 2) adaptive 16-state noise-predictive maximum-likelihood (NPML) detection and 3) extended 64-state data-dependent NPML detection that tracks the first and second order statistics of the data-dependent noise (D3-NPML). Each data point results from processing about five million bits. To set a target threshold for the BER at the output of the detector, we analyzed the performance of the Reed-Solomon product code used in state-of-the-art tape drives combined with the iterative decoding scheme described in [2]. This analysis indicates a post-error-correction-coding byte-error rate (UBER) of less than 1e-20, equivalent to that of an enterprise class tape drive, can be achieved with two full decoding iterations if the BER at the output of the detector is &lt; 4.5e-2. Hence, we take a BER &lt; 4.5e-2 as the target threshold. The D3-NPML detector provides significantly better performance than the NPML detector and crosses the BER threshold of 4.5e-2 at a linear density of 750 kbpi. At a linear density of 702 kbpi the D3-NPML detector provides a BER of 2.8e-2 and the NPML detector also has a BER performance below the target threshold. The average SNR at 750 kbpi and 702 kpbi are 9.9 dB and 10.6 dB, respectively. Thus, the D3-NPML detector achieves our target 1e-20 UBER at an operating point of 702 kbpi with an SNR margin of about 0.7 dB. In the area of track following, we made a set of advances to enable the rapid track-density scaling projections of the INSIC roadmap. First, we developed a new timing-based servo pattern that is shown in Fig. 2(a). Second, we developed a field programmable gate array prototyping board that implements four servo channels and a quad channel averaging scheme where the tape head position is calculated by combining position estimates from the readback signals of four servo patterns, see Fig. 2(b). Third, we enhanced the tape transport described in [2] with two 20 mm diameter air bearing tape guides and a prototype track-following actuator that enables a lower spacing between the tape guides adjacent to the head. This decreased tape guide spacing reduces compressional wave disturbances that can degrade the track-following performance. Fourth, we developed a low friction tape head that reduces friction by about 75% compared to the heads used in our previous work [2],[3] and further reduces compressional wave disturbances. Finally, we used the H-infinity framework to design a set of tape velocity optimized track-following controllers. Combining these technologies, we achieved a position error signal (PES) characterized by its standard deviation of σPES ≤ 3.18 nm over the tape velocity range of 1.2 to 4.1 m/s as shown in Fig. 2(c). We estimate the minimum reliable track width supported by this tracking accuracy with the INSIC model used in our previous work [2], [3], i.e.: track width = 2 x (2)0.5 x 3σPES + reader width. Taking the 29nm width of the reader used for the recording experiments and a worst case σPES = 3.2 nm results in a 56.2 nm track width and a track density of 451.9 ktpi. Combined with the linear density of 702 kbpi demonstrated with the 29 nm reader enables a potential areal recording density of 317 Gb/in2.

**References:**

[1] Information Storage Industry Consortium (INSIC) 2019-2029 Tape Roadmap, http://www.insic.org/wp-content/uploads/2019/07/INSIC-Technology-Roadmap-2019.pdf [2] S. Furrer et al., "85.9 Gb/in2 recording areal density on barium ferrite tape ", IEEE Trans. Magn., vol. 51, no. 4, Apr. 2015, Art. ID 3100207. [3] M. A. Lantz et al., "123 Gb/in2 recording areal density on barium ferrite tape ", IEEE Trans. Magn., vol. 51, no. 11, Nov. 2015, Art. ID 3101304.

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/ea49499647aa7c96c27439679edc4096.jpg)
Fig 1. (a) SNR vs. linear density, (b) BER vs. linear density for three detectors. The dashed line in the BER plot indicates the 4.5e-2 target byte-error rate threshold.

![](https://assets.underline.io/uploads/markdown_image/1/image/1705d36ba0e3724ce22ce7522c845fd5.jpg)
Fig 2. (a) Geometry of the new servo pattern, (b) Read back signals from four servo tracks formatted with the new servo pattern, at 2.15m/s tape velocity, (c) Standard deviation of the PES versus tape velocity.

 317 Gb/in2 Recording Areal Density on Strontium Ferrite Tape INVITED

Introduction and Background 60 Zettabytes (ZB or 10^21 Bytes) will be created in 2021 and grow to 160 ZB by 2025.(1) To store this data, Hard Disk Drives (HDD) areal density must continue to increase from current products near 1.1Tbpsi (2) to the demonstrated AD of 2.77Tbpsi (3) and beyond. To support this growth, reader technology must also advance to higher AD with manufacturable solutions. Remarkably, HDD reader technology still utilizes the Spin Valve reader concept that was first introduced in 1997 at ~ 1 Gbpsi. This 1000x increase in reader AD capability has been achieved by scaling of critical dimensions, the introduction of TMR, advances in stack materials/ processing and utilization of multiple read sensors. The extendibility of the SV TMR design and supporting innovations has been remarkable - but likely not without limits. The HDD industry’s Advanced Storage Research Consortium (ASRC, http://asrc.idema.org/) has sought to understand and address read sensor requirements for HDD Areal Densities (AD) up to 4Tbpsi and higher. In this paper we release the ASRC reader roadmap. We identify critical challenges and key gaps for the SV TMR type reader to support 4Tbpsi. We then outline what may be required for &gt; 4Tbpsi and explore how to proceed. Approach and Methods We begin by seeking to understand the potential extendibility of the Reader Spin Valve design with TMR stack. We partition the problem between Resolution and SNR. Multiple reader design geometries are considered. (Figure 1.) The reader design resolution capabilities were determined using a new 2D micromagnetic reciprocity approach. The Bottom SV and derivative Recessed AFM design appear to be sufficient for 4Tbpsi. To understand the reader SNR requirements, one must begin with the recorded data that one needs to readback. A top-down system level approach and bottom-up micromagnetic modeling approach are combined and iterated to identify the suitable reader requirements. A RSS model is used to estimate reader requirements between 2 and 6 Tbpsi.(4) A combined finite difference micromagnetic model and analytical reader signal-noise model is used to perform DOE’s to determine the closest fit solutions. Results and Discussion The results of this study show that reader widths must shrink to near 10nm and shield-to-shield spacing approach 15nm to provide cross-track and down-track resolution to support track densities near 1130 kTPI and linear densities &gt; 3600 kFCI for ~ 4Tbpsi. Meeting these targets will demand improved process capabilities and new innovations in device designs. SNR requirements are used to project TMR reader stack magnetoresistance (MR) and resistance-area (RA) product targets. Within reasonable assumptions for sensor bias, stability and material properties, we show stack requirements are well in excess of 100% MR at 0.10 uOhm-cm RA. (Figure 2) This requirement is significantly more challenging than previously projected and exceeds best reports to date for TMR readers (5). In addition to seeking high signal, it is also vital to understand and manage the noise components. We show thermal magnetic noise is a growing concern but we further show that other contributions such as preamp noise could dominate as reader dimensions shrink and resistance grows. Roadmap Challenges and Gaps An overall reader spec is provided with proposed geometric, magnetic, and electronic targets. We also explore potential future designs to meet requirements &gt; 4Tbpsi. A summary of key issues, possible solutions and important research topics is reviewed. We hope this study can illuminate and motivate critical research into these key reader technologies. Meeting these challenges will be critical to continued HDD AD growth to 4Tbpsi and beyond.

**References:**

 1) Data Age 2025, Dec 2018 https://www.seagate.com/our-story/data-age-2025/ 2) Forbes, July 2020 https://www.forbes.com/sites/tomcoughlin/2020/07/08/western-digital-data-center-16-20-tb-hdds/?sh=4f56c3f87ba9 3) TMRC 2020, Paper A7, S. Grantz et al, "Heat Assisted Magnetic Recording Dependence on Reader for Conventional and Shingled Magnetic Recording" see https://blog.seagate.com/enterprises/energy-assisted-magnetic-recording-will-solve-the-need-for-capacity/ 4) S. Hernandez, et. al, "Geometrical Scaling Limits of Heat-Assisted Magnetic Recording", IEEE Trans. Magn., 2020 (accepted). 5) Nakatani et al, “Read sensor technology for ultrahigh density magnetic recording” MRS Bulletin 2018.

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/f9d9c340bac329ce8b71e72a67697970.jpg)
A range of reader designs were considered to satisfy the down-track and cross-track resolution requirements. The Bottom SV and derivative Recessed AFM design may be sufficient near 4Tbpsi.

![](https://assets.underline.io/uploads/markdown_image/1/image/0ed76210a04117fadf5171ea35378555.jpg)
Reader stack requirements at 4Tbpsi for BAR 2.4 (left) and 3.2 (right). MR requirement varies with free layer damping constant alpha as illustrated. The best fit is shown by design point circle on graph .

 HDD Reader Technology Roadmap to an Areal Density of 4 Tbpsi and Beyond INVITED

The development of high-density magnetic recording media is limited by the superparamagnetism in very small ferromagnetic crystals. Hard magnetic materials with strong perpendicular anisotropy offer stability and high recording density. To overcome the difficulty of writing media with a large coercivity, heat assisted magnetic recording (HAMR) has been developed, rapidly heating the media to the Curie temperature Tc before writing, followed by rapid cooling. Requirements are a suitable Tc, coupled with anisotropic thermal conductivity and hard magnetic properties. Here we introduce Rh2CoSb as a new hard magnet with potential for thin film magnetic recording. A magnetocrystalline anisotropy of 3.6 MJm-3 is combined with a saturation magnetization of μ0Ms = 0.52 T at 2 K (2.2 MJm-3 and 0.44 T at room-temperature). The magnetic hardness parameter of 3.7 at room temperature is the highest observed for any rare-earth free hard magnet. The anisotropy is related to an unquenched orbital moment of 0.42 µB on Co, which is hybridized with neighbouring Rh atoms with a large spin-orbit interaction. Moreover, the pronounced temperature-dependence of the anisotropy that follows from its Tc of 450 K, together with a high thermal conductivity of 20 Wm-1K-1, makes Rh2CoSb a candidate for development for heat assisted writing with a recording density in excess of 10 Tb/in2.

**References:**

Adv. Mater. 2020, 32, 2004331

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/e4f78a1c92343bbb531bc8b98bb97109.png)
Magnetic properties of Rh2CoSb.

![](https://assets.underline.io/uploads/markdown_image/1/image/bd747b83e3690c6f8fce758097e85b48.png)
Comparison of the magnetic hardness parameter κ with other hard magnets.

 New Highly-Anisotropic Rh-Based Heusler Compound for Magnetic Recording New Highly-Anisotropic Rh-Based Heusler Compound for Magnetic Recording

Magnetic field sensors in a rigid format have been typically associated with recording heads, hard disk drives and the automotive industry. Unlocking new application scenarios requires changing the intrinsic properties of these sensors to make them adaptable to new challenges. One way to accomplish this goal, is to allow these sensors to change shape and be flexible, stretchable or solution-processable, what we call shapeable magnetoelectronics [1]. This technology relies on the smart combination of inorganic thin films prepared directly on flexible or elastomeric substrates. Shapeable magnetoelectronics resulted from the cooperative effort of fundamental and application-oriented communities in the field of curvilinear magnetism [2], and the involvement of fabrication methods for flexible electronics [3], [4]. The combination of these research fields has resulted in a variety of flexible [5], [6], printable [7]–[9], stretchable [10]–[12] and imperceptible17,35–37 magnetic field sensing elements. Stemming from these developments, various applications like automotive [19], consumer electronics and point of care [6], [13], [14], and virtual reality [15]–[17], have emerged. For automotive purposes, shapeable magnetic sensors can be useful to monitor the magnetic field profile the nonplanar and narrow gaps inside electrical motors, to minimize losses and improve the overall efficiency [5]. In point-of-care applications, they can enable fast biosensing methods for wearable health monitoring based on magnetofluidics [6], [13]. For virtual reality they allow a whole new set of touchless interaction possibilities using the ambient magnetic fields as input stimuli [15]–[17]. One example of this application is an on-skin sensor, which can dim the intensity of a virtual lightbulb based on the relative angle between the sensor and the magnetic field of a permanent magnet [16]. This idea was further improved to remove the need for permanent magnets and instead use the earth’s magnetic field as input stimulus. Reaching this level of sensitivity required the use of barber pole [18] modified anisotropic magnetoresistive (AMR) sensors, which allowed detecting magnetic fields of µT with a flexible on-skin patch. Aside from enable artificial magnetoception, the patch can be used as an interactive device for virtual reality which only uses the geomagnetic field [15] (Fig. 1). Further works have improved the sensitivity to about 200 nT, which could have applications for highly sensitive point-of-care devices [14]. In recent works, we have demonstrated shapeable magnetoelectronics which are multimodal, so that they transduce and discriminate both tactile (via mechanical pressure) and touchless (via magnetic field) stimuli in real time [17]. Such a feat is attained by fabricating a magnetic microelectromechanical platform (m-MEMS), which combines flexible magnets based on polymer composites and mechanically compliant magnetic sensors. These m-MEMS e-skins enable complex interactions with magnetically functionalized objects in the real world, which supplement the content data appearing in virtual reality. For example, an augmented reality menu with multiple layers of interaction can be operated with one single sensor using its embedded multidimensional touch (Fig. 2, top). A challenging aspect for shapeable magnetoelectronics is the fact that output signals are usually amplified by rigid components outside the flexible supports. This readout scheme can introduce substantial noise through the cabling which is then amplified together with the signals. Eliminating this noise requires including amplifying elements directly on the flexible support, which implies using intrinsically flexible, thin-film transistor technologies. We have demonstrated such an approach, by combining highly sensitive magnetic field sensorics with high performance InGaZnO based readout electronics, on the same flexible support [19] (Fig. 2, bottom). Although entirely flexible, this platform outperforms commercial rigid magnetic sensor systems in responsivity by at least one order of magnitude. This noteworthy performance is achieved by designing a giant magnetoresistive sensor bridge connected to a cascade of differential and power amplifiers acting as readout circuity. Combining all these features in robust on-skin devices will propel this field beyond exploratory research and towards full-fledged applications, where shapeable magnetic sensors can be crucial for maximizing device performance.

**References:**

[1] D. Makarov, M. Melzer, D. Karnaushenko, and O. G. Schmidt, “Shapeable magnetoelectronics,” Applied Physics Reviews, vol. 3, no. 1, p. 011101, Mar. 2016, doi: 10.1063/1.4938497. [2] R. Streubel et al., “Magnetism in curved geometries,” J. Phys. D: Appl. Phys., vol. 49, no. 36, p. 363001, Aug. 2016, doi: 10.1088/1751-8113/48/12/125202. [3] S. Huang, Y. Liu, Y. Zhao, Z. Ren, and C. F. Guo, “Flexible Electronics: Stretchable Electrodes and Their Future,” Advanced Functional Materials, vol. 29, no. 6, p. 1805924, 2019, doi: https://doi.org/10.1002/adfm.201805924. [4] Y. Liu, M. Pharr, and G. A. Salvatore, “Lab-on-Skin: A Review of Flexible and Stretchable Electronics for Wearable Health Monitoring,” ACS Nano, vol. 11, no. 10, pp. 9614–9635, Oct. 2017, doi: 10.1021/acsnano.7b04898. [5] M. Melzer et al., “Wearable Magnetic Field Sensors for Flexible Electronics,” Advanced Materials, vol. 27, no. 7, pp. 1274–1280, Feb. 2015, doi: 10.1002/adma.201405027. [6] G. Lin, D. Makarov, M. Melzer, W. Si, C. Yan, and O. G. Schmidt, “A highly flexible and compact magnetoresistive analytic device,” Lab Chip, vol. 14, no. 20, pp. 4050–4058, 2014, doi: 10.1039/C4LC00751D. [7] D. Karnaushenko, D. Makarov, C. Yan, R. Streubel, and O. G. Schmidt, “Printable Giant Magnetoresistive Devices,” Advanced Materials, vol. 24, no. 33, pp. 4518–4522, Aug. 2012, doi: 10.1002/adma.201201190. [8] D. Karnaushenko, D. Makarov, M. Stöber, D. D. Karnaushenko, S. Baunack, and O. G. Schmidt, “High-Performance Magnetic Sensorics for Printable and Flexible Electronics,” Adv. Mater., vol. 27, no. 5, pp. 880–885, Feb. 2015, doi: 10.1002/adma.201403907. [9] D. Makarov, D. Karnaushenko, and O. G. Schmidt, “Printable Magnetoelectronics,” ChemPhysChem, vol. 14, no. 9, pp. 1771–1776, 2013, doi: 10.1002/cphc.201300162. [10] M. Melzer et al., “Stretchable Magnetoelectronics,” Nano Letters, vol. 11, no. 6, pp. 2522–2526, Jun. 2011, doi: 10.1021/nl201108b. [11] M. Melzer, D. Karnaushenko, G. Lin, S. Baunack, D. Makarov, and O. G. Schmidt, “Direct Transfer of Magnetic Sensor Devices to Elastomeric Supports for Stretchable Electronics,” Advanced Materials, vol. 27, no. 8, pp. 1333–1338, Feb. 2015, doi: 10.1002/adma.201403998. [12] M. Melzer, D. Makarov, and O. G. Schmidt, “A review on stretchable magnetic field sensorics,” J. Phys. D: Appl. Phys., vol. 53, no. 8, p. 083002, Feb. 2020, doi: 10.1088/1361-6463/ab52cf. [13] G. Lin, D. Makarov, and O. G. Schmidt, “Magnetic sensing platform technologies for biomedical applications,” Lab Chip, vol. 17, no. 11, pp. 1884–1912, May 2017, doi: 10.1039/C7LC00026J. [14] P. N. Granell et al., “Highly compliant planar Hall effect sensor with sub 200 nT sensitivity,” npj Flexible Electronics, vol. 3, no. 1, p. 3, Feb. 2019, doi: 10.1038/s41528-018-0046-9. [15] G. S. Cañón Bermúdez, H. Fuchs, L. Bischoff, J. Fassbender, and D. Makarov, “Electronic-skin compasses for geomagnetic field-driven artificial magnetoreception and interactive electronics,” Nature Electronics, vol. 1, no. 11, p. 589, Nov. 2018, doi: 10.1038/s41928-018-0161-6. [16] G. S. Cañón Bermúdez et al., “Magnetosensitive e-skins with directional perception for augmented reality,” Science Advances, vol. 4, no. 1, p. eaao2623, Jan. 2018, doi: 10.1126/sciadv.aao2623. [17] J. Ge et al., “A bimodal soft electronic skin for tactile and touchless interaction in real time,” Nat Commun, vol. 10, no. 1, p. 4405, Dec. 2019, doi: 10.1038/s41467-019-12303-5. [18] K. Kuijk, W. van Gestel, and F. Gorter, “The barber pole, a linear magnetoresistive head,” IEEE Transactions on Magnetics, vol. 11, no. 5, pp. 1215–1217, Sep. 1975, doi: 10.1109/TMAG.1975.1058886. [19] N. Münzenrieder et al., “Entirely Flexible On-Site Conditioned Magnetic Sensorics,” Advanced Electronic Materials, vol. 2, no. 8, p. 1600188, Aug. 2016, doi: 10.1002/aelm.201600188.

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/3ba71cee33031382721e1689312e1f2a.jpg)
Fig. 1 Shapeable magnetic sensors as touchless interactive devices for virtual reality. (left) Human hand wearing the on-skin magnetic sensor and approaching a permanent magnet. (center) As the user turns it hands over the magnet, the intensity of virtual lightbulb is dimmed. This two panels are adapted from reference [18]. (right) Applying the same concept but changing the sensing principle allows controlling a virtual character on screen using only the earth's magnetic field. This panel is adapted from reference [17]

![](https://assets.underline.io/uploads/markdown_image/1/image/c1fa368c68af4887c7567f763724f9c8.jpg)
Fig. 2 Multimodal shapeable magnetoelectronics and fully flexible conditioning electronics. (top left) Schematic of a m-MEMS. (top center) Approaching an object using the touchless mode of the m-MEMS activates the first layer of interaction. (top right) Touching the object activates a second layer of interaction and opening a new menu. (center) Entirely flexible and on-site conditioned magnetic field sensing platform containing a power amplifying cascade (bottom left) and a giant magnetoresistive sensor Wheatstone bridge (bottom right).

 Mechanically shapeable magnetic field sensor technologies INVITED

In recent years, magnetoelectric ΔE-effect sensors have been investigated for the detection of small amplitude and low-frequency magnetic fields that typically occur in many biomedical and diagnostic applications. Such sensors are based on magnetoelectric composite resonators, which consist of mechanically coupled magnetostrictive and piezoelectric materials. They can be processed on a large scale by microelectromechanical system (MEMS) technology with dimensions of a few millimeters down to a few micrometers and are compatible with complementary metal-oxide-semiconductor (CMOS) electronics. Furthermore, they can be operated at room temperature with a broad-bandwidth and a large dynamic range and are robust against microphony and mechanical noise. Such sensors utilize the ΔE-effect of the magnetostrictive material, i.e. the change of the mechanical stiffness tensor with magnetization and hence, with an applied magnetic field. Since our first publication of this sensor concept in 2011 [1], much progress has been made in understanding the complex interplay of magnetic, mechanical, and electrical properties and their influence on signal and noise of the sensor system. This holds for different designs of magnetoelectric MEMS cantilevers, but also for surface acoustic wave devices [2]. Here, we present recent experimental and theoretical results on the ΔE-effect, the sensitivity, and the noise of magnetoelectric ΔE-effect sensors. The sensors consist of magnetoelectric MEMS resonators with sputter-deposited AlN or Al73Sc27N as a piezoelectric material and soft-magnetic (Fe90Co10)78Si12B10-based single or multilayers. A magnetoelastic macrospin model of the ΔE-effect in all stiffness tensor components is presented and combined with a finite element electro-mechanical model of the resonator. First and higher order torsion (Fig. 1) and bending modes are compared and analyzed regarding the sensitivity and the ΔE-effect [3]. Measurements and simulations reveal the dependency of the sensitivity on the mode number, caused by the geometry, mode shape, and the ΔE-effect in different stiffness tensor components. Specific rules for the resonator design are derived as a result. Besides the geometric and magnetic material properties, we find that the resonator loss and the piezoelectric material have a decisive impact on signal and noise. The influence of the quality factor Q [4] and the piezoelectric material [5] on signal and noise are investigated experimentally and explained by combining the previous model with a signal-and-noise equivalent circuit model (Fig. 2). Both quantities, Q and the piezoelectric material show the promising potential of significantly increasing the sensitivity and improving the limit of detection (LOD). Yet, an improvement in the LOD is currently limited by magnetic noise that becomes dominant at large operating voltage amplitudes [6]. Hence, understanding the specific origins of magnetic noise in such magnetostrictive resonant structures is crucial for sensor improvement in the future. A physical magnetic noise model is presented to identify the origin of stress-amplified, thermal-magnetic noise. It combines large scale finite differences micromagnetism with the mechanical equations of motion to capture magnetostrictive self-energy and frequency effects. Including the piezoelectric constitutive relation and the operating electronics the sensor’s output voltage noise density can be estimated. With the model, we evaluate and discuss experimental results and explain the dependency of magnetic noise on the excitation amplitude and the magnetic bias field. The model provides detailed insights into general noise limits, which arise from using the ΔE-effect as the sensing principle. Finally, we briefly present first applications in cell imaging [7] and show that small signal measurements with simultaneous localization are enabled by a dual-mode operation scheme with compact self-biased ΔE-effect sensors [8]. This is of particular interest for typical biomedical inverse solution problems where the precise knowledge of the sensor’s position and orientation is essential. Such applications could benefit from sensor arrays that provide many measurements with a high spatial resolution. The noise equivalent model is extended to arrays of parallel sensor elements and compared with measurements. Implications and prospects for sensor developments in the future are discussed in a conclusion.

**References:**

[1] B. Gojdka, R. Jahns, K. Meurisch, et al., APL Vol. 99, p.1-4 (2011); Nature Vol. 480, p.150 (2011) [2] J. Schmalz, A. Kittmann, P. Durdaut, et al., Sensors, Vol. 20, p.1–17 (2020) [3] B. Spetzler, C. Kirchhof, E. Quandt, et al., Phys. Rev. Appl., Vol. 12, p.1-13 (2019) [4] B. Spetzler, C. Kirchhof, J. Reermann, et al, APL., Vol. 114, p.183504 (2019) [5] B. Spetzler, J. Su, R.-M. Friedrich, et al., APL Materials., invited, submitted (2021) [6] P. Durdaut, E. Rubiola, J. Friedt, et al., J. Microelectromech. Syst., Vol. 29, p.1347 - 1361 (2020) [7] N. Lukat, R. M. Friedrich, B. Spetzler, et al., Sensors Actuators A Phys., Vol. 309, 1–8 (2020) [8] B. Spetzler, C. Bald, P. Durdaut, et al., Sci. Rep., accepted, (2021)

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/1ddee42922239ae2a14790371e63be23.jpg)
Normalized resonance frequencies fr/fr,max of the first three torsion modes (TM1-3) as functions of the magnetic flux density µ0H applied along the long axis of the cantilever; inset: top photograph of the MEMS cantilever with visible electrodes. A soft magnetic FeCoSiB-Cr multilayer is sputter deposited on the other side.

![](https://assets.underline.io/uploads/markdown_image/1/image/9c28120fbc2c2f322ee01c1b390d8acb.jpg)
Measured and simulated limit of detection (LOD) of two sensors of identical design that differs only in the piezoelectric material, which is AlN and AlScN, respectively. At large excitation voltage amplitudes ûex magnetic noise imparis the LOD.

 ΔE-Effect Magnetic Field Sensors

Compact, ultra-low power magnetic field sensors are desirable for applications in multiple fields from biomedical engineering to military sensors [1,2,3]. Through direct coupling of magnetostrictive and piezoelectric strain, an on-chip sensor can be designed by exploiting the interface between thin films which can generate a charge when under an external magnetic field bias that depends not only on the magnitude of the measured field, but also the magnetic field direction enabling vector sensing capabilities. Magnetoelectric MEMS-scale heterostructures deposited in layers on silicon wafers and etched to create beams and cantilevers operating at the eletromechanical resonance were shown to work in a stress reconfigurable mode [4,5]. In this work we demonstrate magnetic field and directional response of FeC/AlN MEMS double-clamped heterostructure resonators. Through coupled strain engineering we are able to exploit the magnetic anisotropy and create a preferred axial response along the easy axis length of the suspended heterostructure beam. Resonant frequency response to the external magnetic field produces a sensitive measure of the angular dependence depending on the field vector components along the long and short axes. Figure 1a illustrates the heterostructure design of the double clamped ME MEMS structure and Figure 1b depicts a set of beams fabricated in a rosette pattern between Helmholtz coils used to apply a magnetic field to study the resonance response. The resonant peak shift with applied external magnetic field can be seen in Figure 2a where the butterfly loop has a linear slope df/dH near coercive field at 100G of 35 Hz/mT or 47 Hz/mT depending on the loop leg denoting the best bias response working point for this sensor. Polar plot of the resonance peak vs field at 15° increments can be seen in Figure 2b showing the directional response of the double clamped ME MEMS structures. Limit of detection measurements and further resonant peak angular dependence will be presented and deposition conditions will be discussed to illustrate the necessary conditions required to optimize creation of a high-quality MEMS sensor.

**References:**

[1] M. Hämäläinen, R. Hari, R.J. Ilmoniemi, and O. V. Lounasmaa, Reviews of Modern Physics 65, 413–497 (1993), DOI: 10.1103/RevModPhys.65.413 [2] J. W. Mooney, S. Ghasemi-Roudsari, E. Reade Banham, and B. T. H. Varcoe; Biomed. Phys. Eng. Express 3 (2017) 015008, DOI: 10.1088/2057-1976/3/1/015008 [3] T. R. Clem, Naval Engineers Journal 110, 139–149 (1998), DOI: 10.1111/j.1559-3584.1998.tb02393.x [4] S. P. Bennett, J. W. Baldwin, M. Staruch, and P. Finkel; Applied Physics Letters 111, 252903 (2017), DOI: 10.1063/1.5011728 [5] M. Staruch, et al.; Physical Review Applied 11, 034028 (2019); DOI:10.1103/PhysRevApplied.11.034028

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/50e45a3a8b51d1152352d15c4537b1ae.jpg)
Figure 1: (a) A top view and side view of magnetoelectric arched beam resonator, consisting of a layered film stack on a silicon wafer consisting of Si3N4 support, Pt back electrode with Ta adhesion layer, AlN piezoelectric layer, and Fe0.7Co0.3 top electrode and magnetostrictive layer. (b) Rosette pattern of beams fabricated on a silicon chip between Helmholtz coils, with rotation for angular dependence measurements.

![](https://assets.underline.io/uploads/markdown_image/1/image/d02c2d26681eeb936087c33b918db727.jpg)
Figure 2: (a) Frequency shift of resonance peak vs bias magnetic field applied parallel to long axis of the beam. (b) Polar plot of the magnetic field response at 15° intervals for 0, 200, 300, 500, and 1000 Gauss.

 Directional Magnetic Field Response of FeCo/AlN Heterostructure Magnetoelectric Resonators

Magnetoresistive field sensors have a wide range of uses, such as in biomedical applications, in the automotive industry, robotics, or smart city technologies. Figures of merit like sensitivity, detectivity and spatial resolution are used to evaluate the performance of such sensors [1]. At low frequencies, the 1/f noise component is dominant and is in fact responsible for hindering the device's detectivity, and, consequently, its performance. There is an active research effort to reduce this noise component and tackle this limitation [2]. Vortex-based devices, in which the free layer exhibits a vortex magnetization distribution in its equilibrium state, are promising magnetic field sensors due to their large linear detection range [3] and the fact that they show practically no hysteresis in this range. Besides, these devices are often considered as model systems for the study of magnetization dynamics. In this study, we focus on the analysis of the 1/f noise in a particular type of magnetic sensor based on a vortex magnetic configuration integrated in a magnetic tunnel junction (MTJ) spin torque nano-oscillator. These devices present excellent rf characteristics for future radio-frequency devices and applications, such as rf generation [4], detection [5] or neuromorphic computing [6]. While the use of vortex-based spin-torque nano-oscillators for applications such as these mentioned here has been largely studied, they are newcomers in the magnetic field sensing landscape. In this work, we analyse the 1/f low-frequency noise in vortex-based spin-torque nano-oscillators by determining the Hooge parameter in different conditions. The Hooge parameter is typically used to characterize and compare sensor’s noise properties. Firstly, we find that in the uniform states the Hooge parameter of the studied device is comparable to that measured in state-of-the-art TMR sensors with similar RA product, α = 10-11 - 10-10 µm2. In the vortex state, the measured noise level is around one order of magnitude greater than in the parallel (and antiparallel) state, see Fig. 1a. This is due to the increased probability of pinning of the vortex core into defects or inhomogeneities of the free layer. Secondly, we determine that the dynamics of the vortex core strongly influence the noise level of the device. For a current above a certain threshold, the spin transfer torque surpasses the intrinsic damping of the free layer resulting in self-sustained oscillations of the vortex core [7]. In the self-sustained oscillations' regime, the noise decreases to a level close to that of the antiparallel state, see Fig. 1b. Furthermore, we present a novel strategy for reducing the 1/f low-frequency magnetic noise, through the application of an in-plane rf field or injection of an rf current [8]. By using this approach while the device is operating in the self-sustained regime, we are capable of further decreasing the measured noise level to values close to the minimum attainable, see Fig. 2. We find that this noise reduction is non-resonant, see Fig. 2a. As such, we can have a vortex-based STNO with relevant noise properties, comparable to those of state-of-the-art TMR field sensors. At the same time, we profit from the specific advantages of vortex-based spin-torque nano-oscillators for sensing applications: large linear detection range, virtually no hysterisis and high spatial resolution. This noise reduction technique based on the spin-torque dynamics of the vortex can have an impact on the sensors' industry, which may profit from the advantages of the vortex configuration. The work is supported by the French ANR project “SPINNET” ANR-18-CE24-0012.

**References:**

[1] D. C. Leitão et al., Nanotechnology 27, 045501 (2015) [2] L. Huang et al., Journal of Applied Physics 122, 113903 (2017); J. Moulin et al., Appl. Phys. Lett. 115, 122406 (2019) [3] D. Suess et al., Nat. Electronics 1, pages 362–370 (2018) [4] S. Wittrock et al., Phys. Rev. B 99, 235135 (2019) [5] A. S. Jenkins et al., Nat. Nanotech. 11, 360 (2016); D. Marković et al., Phys. Rev. Applied 13, 044050 (2020) [6] M. Romera et al., Nature 563, 230–234 (2018); J. Torrejon et al., Nature 547, 428-431 (2017) [7] A. Dussaux et al., Nat. Comm. 1, 8 (2010) [8] M. Jotta Garcia et al., arXiv:2012.09616 [cond-mat.mes-hall] (2020)

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/f1e2a4020c2f2daf24d07405919ec60f.jpg)
Fig.1 a) Hooge parameter as a function of an in-plane magnetic field that is swept from the parallel to the anti-parallel state and back. b) Evolution of the Hooge parameter with the applied bias current. The inset shows the oscillation power of the rf emission due to the emerging vortex dynamics. The red dotted line represents the Hooge parameter measured in the AP state.

![](https://assets.underline.io/uploads/markdown_image/1/image/8659329698821b38c65d8cb8989eb4a3.jpg)
Fig. 2 a) Hooge parameter as a function of the frequency of the applied oscillating field, with Prf = 1 mW. The red line indicates the value measured in the absence of this field. b) Hooge parameter as a function of the power amplitude of the rf field at a fixed frequency, f = fres = 243.1 MHz. The green dotted lines represent the Hooge parameter measured in the P state.

 Spin-torque Dynamics for Noise Reduction in Vortex-based Sensors

Some of the early parallel fluxgate sensors had cores made of magnetic wires and this design is still used in many devices, including gradiometers and low-cost sensor arrays in magnetoelastic torque meters [1]. Wire and also multiwire cores are also being used in transverse fluxgates [2]. Despite their larger noise and lower temperature stability compared to ring-core fluxgates, wire-core parallel fluxgates have several advantages [3]: 1. their sensing direction is precisely defined by the direction of the sensor core 2. they have excellent spatial selectivity which is important for the detection of magnetic particles [4] 3. High sensitivity allows decreasing the core length 4. The large shape anisotropy gives them low crossfield error [5]. The sensitivity of ring-core and race-track fluxgate sensors is well understood and described in the literature [6,7], while such study on wire-cored sensors is missing. We offer it in this paper for the case of voltage output. We calculate the sensitivity as a function of core and pickup coil geometry and configuration of wire core by Finite-element modeling and compare these results with the measurements. We analyze both existing configurations (single-core, Foerster and Vacquier) and propose multiwire fluxgates of two types: with collective excitation and pickup coils and with individual pickup coils. This paper is based on model cores made of 36 mm long, 0.2 mm diameter Permalloy wires with chemical composition Ni78Fe15Cu4Mo3. The wires were annealed for 3 hours in a dry hydrogen atmosphere at 1080 °C to obtain near-zero magnetostriction. Our simulation models were based on constant permeability and also on the magnetization curve estimated from the measurement on the wire. Sensitivity and noise properties were measured for sensors containing 2 to 12 wires with different distances between the wires. The model can be upscaled for magnetic rods and downscaled for bundles of microwires and arrays of nanowires. However, the results strongly depend on the aspect ratio of the used wires. Fig. 1 shows examples of the measured fluxgates. The multiwire type has a 3D printed honeycomb bobbin which allows insertion of different configurations of wires in glass or ceramic capillaries. For each configuration, we found the optimum working point (excitation frequency and amplitude) to maximize the sensitivity and minimize the noise. In order to simplify the problem, we did not use the parametric amplification of the output voltage. We studied the effect of pickup coil geometry by FEM modeling and verified the results experimentally: the optimum coil length is 80 % of the core length and the coil diameter should be minimized as the sensitivity is inversely proportional to the pickup coil diameter as shown in Fig.2. In this regard’s fluxgate behaves differently from induction sensors without excitation, which shows the increase of sensitivity with the pickup coil diameter. This dependence does not change with the wire permeability. This decrease of the sensitivity is the reason, why multiwire fluxgate with large common pickup coil has larger noise (0.7 to 14 nT/√Hz at 1 Hz, depending on configuration) than single-core (180 pT/√Hz@1Hz) and Vacquier type (51 pT/√Hz@1Hz) sensors. The effective solution to this problem is to use an individual pickup coil for each wire instead of a collective coil common for all wires. The sensitivity of the multiwire fluxgate is increasing with the wire pitch and the noise is inversely proportional to the wire pitch. This is caused by two factors: 1. With increasing wire distance their magnetostatic interaction is decreasing, which results in lower demagnetization 2. With increasing distance the noise correlation between wires is decreasing and the total noise is reduced by the averaging effect, which is stronger for independent noise sources This study was limited to the initial selection of optimum geometry of the wire core and pickup coil of the voltage-output parallel fluxgate. Further increase of sensitivity and noise reduction can be achieved by tuning the pickup coil by the parallel capacitor to the mode of parametric amplification at second harmonics. This study was supported by the Grant Agency of the Czech Republic within the Nanofluxgate project (GACR GA20-27150S).

**References:**

[1] P. Ripka, Magnetic sensors and magnetometers, Artech House, 2001 [2] M. Butta, M. Vazquez, R. P. del Real et al., AIP Advances Vol. 10, (2020) [3] M. Janosek, "Parallel fluxgate magnetometers," in High Sensitivity magnetometers, Springer, 2017 [4] J. Lei, T. Wang, C. Lei et al. Applied Phys. Lett. Vol. 102, 022413 (2013) [5] P.Ripka, W. Billingsley, Sens. Act. A Vol. 81, p. 176-179 (2000) [6] C. Hinnrichs, J. Stahl, K. Kuchenbrandt et al., IEEE Trans. Magn. Vol. 37, p. 1983 (2001) [7] L. Perez, I. Lucas, C. Aroca et al., Sens. Act. A Vol. 130, p. 142 (2006)

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/197886eeec5ca839cbd0ec0c6da03e29.jpg)
Figure 1 Experimental fluxgate sensors: a) single core, b) Vacquier, c) multiwire

![](https://assets.underline.io/uploads/markdown_image/1/image/b8f674df538b8b10c95c207e3fa16986.jpg)
Figure 2 Relative flux of the 36 mm long pickup coil with diameter D as a function of its relative diameter D/d – values calculated by 2D FEM for 36 mm long, d = 0.2 mm diameter magnetic wire core

Downloads
