First Order Reversal Curve (FORC) diagrams have over 30 years of history as a tool to characterise ensembles of magnetic particles reaching from applications in geophysics to detect the prevalence of carriers of paleomagnetic signals [1] to the measurement of magnetic recording media properties [2]. Using FORC diagrams as a purely quantitative tool remains an open topic of active research (see e.g. [3]), but they have proven to be useful as semi-quantitative instrument to determine traces of magnetic phases in a material mixture [4]. Based on this present understanding we introduce the idea of using FORC diagrams to detect the crystalline structure of the cobalt binder phase in tungsten carbide (WC-Co), a hard metal used in a wide range of high-tech applications (e.g. drills or cutting inserts) [5]. The goal is to interpret FORC diagrams from experimental measurements by micromagnetic simulations as a source of “big data” for a fast characterisation of tungsten carbide binders. Our proposed method goes significantly beyond state-of-the art techniques used for characterisation of WC-Co in particular, but also makes a contribution to the interpretability of FORC diagrams in general by applying machine learning to the large amount of data points available through FORCs.&lt;br/&gt;Here, we present our first results towards such an automated interpretation of FORC diagrams, which requires a substantial amount of training data from micromagnetic simulations. Such simulations provide the opportunity to assemble mixtures of particles with a known distribution of various properties, which should serve as labelled training data. We use energy minimization [6] to compute the magnetization curves of Co particles with sizes of 100 nm and uniaxial anisotropy. A reversal curve is computed starting at each point Hr on the major loop where the magnetization M has changed by a defined amount. Depending on the alignment of the anisotropy axes with respect to the field H different numbers and configurations of domain wall nucleation-propagation-annihilation sequences occur during a full reversal loop, leading to a large variation in the number of generated FORCs. To mitigate the necessary computational efforts to acquire the training data of large ensembles of more than 100 particles we developed a Python-based FORC analysis framework and used scikit-learn’s Random Forest Regressor [7] to predict the surface M(H,Hr) from a subset of simulations. Our first results for an ensemble of non-interacting cubes with varying anisotropy axes show that the FORC diagrams calculated from the predicted M(H,Hr) surface give a valid representation of the FORC diagram calculated directly from the fully simulated ensemble (Fig.1). This approach will enable us to speed up the generation of training data considerably, which provides the basis to understand the microstructure of WC-Co samples containing Co particles with dimensions beyond the 100 nm scale by using FORCs as a fast and non-destructive characterisation tool.&lt;br/&gt;Fig. 2 shows two examples of simulated FORCs and their respective FORC diagrams. In Fig. 2a the external field is aligned more parallel to the particle’s easy axis than in Fig. 2b. As FORC diagrams only show pronounced peaks for irreversible processes, they can be directly associated with the jumps present in the FORCs shown in the upper part. Analytical models to explain the peaks’ positions and heights can only be found for simplified models. Following [8], the two peaks in Fig. 2a can be modelled analytically using a curvilinear hysteresis loop, but this model does not reveal the exact reversal process in the material. Combining micromagnetic simulations with machine learning will enable us to train models using realistic assumptions about the material of interest. As a first step the presented approach will make it possible to get data for the interpretation of FORC diagrams within minutes instead of weeks by replacing time-consuming micromagnetic simulations with sufficiently trained machine learning models.&lt;br/&gt;&lt;br/&gt;The financial support by the Austrian Federal Ministry of Climate Action, Environment, Energy, Mobility, Innovation and Technology (BMK) in the KI-Carbide project (#877141) is gratefully acknowledged.

**References:**

[1] A. R. Muxworthy and D. J. Dunlop: Earth and Planet. Sci. Lett. 203, pp 369-382 (2002)&lt;br/&gt;[2] M. Winklhofer and G. T. Zimanyi, J. Appl. Phys. 99, 08E710 (2006)&lt;br/&gt;[3] D. A. Gilbert, G.T. Zimanyi, R.K. Dumas et al., Sci. Rep. 4, 4204 (2014)&lt;br/&gt;[4] C. Carvallo et al.: Phys. Earth Planet. Inter. 154, pp 308–322 (2006)&lt;br/&gt;[5] J. García et al., Int. J. Refr. Met. 80, pp 40-68 (2019)&lt;br/&gt;[6] L. Exl, J. Fischbacher, A. Kovacs et al., Comp. Phys. Comm. 235, pp 179-186 (2019)&lt;br/&gt;[7] F. Pedregosa et al, JMLR 12, pp 2825-2830 (2011)&lt;br/&gt;[8] C. Pike and A. Fernandez, J. Appl. Phys. 85, pp 6668-6676 (1999)

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/9de8549ddbc61514a201eecc9b7f0b4d.jpg)
Fig. 1 FORC diagrams computed (a) directly from simulating a full ensemble of 125 non-interacting hcp-Co particles with varying alignment of the anisotropy axis with respect to the external field and (b) by using only a subset of 20 simulations as input to a Random Forest Regressor to predict the M(H, Hr) surface

![](https://assets.underline.io/uploads/markdown_image/1/image/2c361c16a150eeb7f7d6915c3daf9b09.png)
Fig. 2 Examples of simulated FORCs and calculated FORC diagrams for a 100 nm cube of hcp Co (uniaxial anisotropy). Colorbars indicate the peak height of the FORC distribution (see also Figure 1). The external field in (a) is aligned more parallel to the easy axis than in (b). The visible peaks in the FORC diagrams (bottom) correspond to irreversible jumps of the magnetization (top).

INTERMAG 2021

Using a Random Forest Regressor to Predict First-Order Reversal Curves of hcp-Co Particle Ensembles

**Welcome to ACL-IJCNLP 2021!**

The great event is jointly organized by the Association for Computational Linguistics (ACL) and Asian Federation of Natural Language Processing (AFNLP).

As in previous years, the program of the conference includes a poster session, tutorials, workshops and demonstrations in addition to the main conference.


We were able to keep the registration fees similar to those charged for the virtual ACL 2020. The one fee allows attendance at the main conference and any/all tutorials and workshops. These fees would be $125 Regular Early and $175 Regular Late; $50 Student Early and $75 Student Late. Early registration closes at midnight July 11, 2021 (Eastern Daylight Time).

**Reminder:** It is ACL’s policy that at least one author of each accepted paper (including ACL Finding papers) must register for the conference.

**Reminder2:** Underline site will open closer to the event. If you already registered you will receive access detail

Registration is now open

IJCNLP-AACL 2021

The great event is jointly organized by the Association for Computational Linguistics (ACL) and Asian Federation of Natural Language Processing (AFNLP).

First Order Reversal Curve (FORC) diagrams have over 30 years of history as a tool to characterise ensembles of magnetic particles reaching from applications in geophysics to detect the prevalence of carriers of paleomagnetic signals [1] to the measurement of magnetic recording media properties [2]. Using FORC diagrams as a purely quantitative tool remains an open topic of active research (see e.g. [3]), but they have proven to be useful as semi-quantitative instrument to determine traces of magnetic phases in a material mixture [4]. Based on this present understanding we introduce the idea of using FORC diagrams to detect the crystalline structure of the cobalt binder phase in tungsten carbide (WC-Co), a hard metal used in a wide range of high-tech applications (e.g. drills or cutting inserts) [5]. The goal is to interpret FORC diagrams from experimental measurements by micromagnetic simulations as a source of “big data” for a fast characterisation of tungsten carbide binders. Our proposed method goes significantly beyond state-of-the art techniques used for characterisation of WC-Co in particular, but also makes a contribution to the interpretability of FORC diagrams in general by applying machine learning to the large amount of data points available through FORCs. Here, we present our first results towards such an automated interpretation of FORC diagrams, which requires a substantial amount of training data from micromagnetic simulations. Such simulations provide the opportunity to assemble mixtures of particles with a known distribution of various properties, which should serve as labelled training data. We use energy minimization [6] to compute the magnetization curves of Co particles with sizes of 100 nm and uniaxial anisotropy. A reversal curve is computed starting at each point Hr on the major loop where the magnetization M has changed by a defined amount. Depending on the alignment of the anisotropy axes with respect to the field H different numbers and configurations of domain wall nucleation-propagation-annihilation sequences occur during a full reversal loop, leading to a large variation in the number of generated FORCs. To mitigate the necessary computational efforts to acquire the training data of large ensembles of more than 100 particles we developed a Python-based FORC analysis framework and used scikit-learn’s Random Forest Regressor [7] to predict the surface M(H,Hr) from a subset of simulations. Our first results for an ensemble of non-interacting cubes with varying anisotropy axes show that the FORC diagrams calculated from the predicted M(H,Hr) surface give a valid representation of the FORC diagram calculated directly from the fully simulated ensemble (Fig.1). This approach will enable us to speed up the generation of training data considerably, which provides the basis to understand the microstructure of WC-Co samples containing Co particles with dimensions beyond the 100 nm scale by using FORCs as a fast and non-destructive characterisation tool. Fig. 2 shows two examples of simulated FORCs and their respective FORC diagrams. In Fig. 2a the external field is aligned more parallel to the particle’s easy axis than in Fig. 2b. As FORC diagrams only show pronounced peaks for irreversible processes, they can be directly associated with the jumps present in the FORCs shown in the upper part. Analytical models to explain the peaks’ positions and heights can only be found for simplified models. Following [8], the two peaks in Fig. 2a can be modelled analytically using a curvilinear hysteresis loop, but this model does not reveal the exact reversal process in the material. Combining micromagnetic simulations with machine learning will enable us to train models using realistic assumptions about the material of interest. As a first step the presented approach will make it possible to get data for the interpretation of FORC diagrams within minutes instead of weeks by replacing time-consuming micromagnetic simulations with sufficiently trained machine learning models. The financial support by the Austrian Federal Ministry of Climate Action, Environment, Energy, Mobility, Innovation and Technology (BMK) in the KI-Carbide project (#877141) is gratefully acknowledged.

**References:**

[1] A. R. Muxworthy and D. J. Dunlop: Earth and Planet. Sci. Lett. 203, pp 369-382 (2002) [2] M. Winklhofer and G. T. Zimanyi, J. Appl. Phys. 99, 08E710 (2006) [3] D. A. Gilbert, G.T. Zimanyi, R.K. Dumas et al., Sci. Rep. 4, 4204 (2014) [4] C. Carvallo et al.: Phys. Earth Planet. Inter. 154, pp 308–322 (2006) [5] J. García et al., Int. J. Refr. Met. 80, pp 40-68 (2019) [6] L. Exl, J. Fischbacher, A. Kovacs et al., Comp. Phys. Comm. 235, pp 179-186 (2019) [7] F. Pedregosa et al, JMLR 12, pp 2825-2830 (2011) [8] C. Pike and A. Fernandez, J. Appl. Phys. 85, pp 6668-6676 (1999)

**Images:**

![](https://assets.underline.io/uploads/markdown_image/1/image/9de8549ddbc61514a201eecc9b7f0b4d.jpg)
Fig. 1 FORC diagrams computed (a) directly from simulating a full ensemble of 125 non-interacting hcp-Co particles with varying alignment of the anisotropy axis with respect to the external field and (b) by using only a subset of 20 simulations as input to a Random Forest Regressor to predict the M(H, Hr) surface

![](https://assets.underline.io/uploads/markdown_image/1/image/2c361c16a150eeb7f7d6915c3daf9b09.png)
Fig. 2 Examples of simulated FORCs and calculated FORC diagrams for a 100 nm cube of hcp Co (uniaxial anisotropy). Colorbars indicate the peak height of the FORC distribution (see also Figure 1). The external field in (a) is aligned more parallel to the easy axis than in (b). The visible peaks in the FORC diagrams (bottom) correspond to irreversible jumps of the magnetization (top).

technical paper

INTERMAG 2021 Welcome Video




<figure class="video_container">
 <iframe src="https://screencast-o-matic.com/player/crflqFVnUpZ?v=6&ff=1&title=0&controls=1" width=640 height=360 frameborder="0" allowfullscreen="true"> </iframe>
</figure>

Want to buy a ticket?

Register for INTERMAG 2021 here

[![](https://assets.underline.io/uploads/markdown_image/1/image/17ce76e7960db633258024eef8d6da7f.png)](https://intermag.org/register)

Got your ticket, but still can’t access the event?

Contact us and our team will look into it.

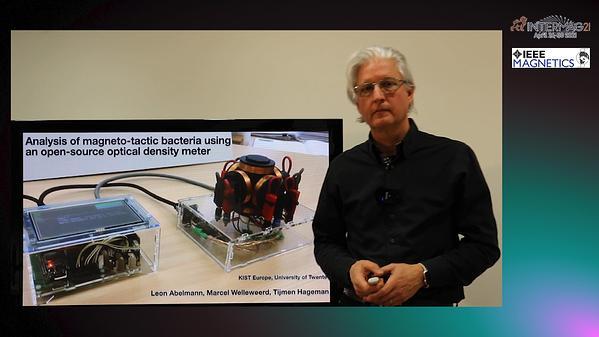

We present a simple device that measures the optical transmission of a suspension of magneto-tactic bacteria under application of a magnetic field. The system consists of a measurement head with a RGB LED, a photodetector and three sets of orthogonal coils that generate a field up to 3.5 mT. In addition we realized a module based on an ESP32 microprocessor that sets the coil currents, performs data collection, and features a touchscreen and Wifi access. Source files such as source code for the software as well as links to the designs for hardware (3D prints, circuit boards) are available online at https://github.com/LeonAbelmann/MagOD, so that anyone with average electronic skills (for instance EE students) can construct such a magnetic Optical Density meter (MagOD) for under 1000 Eu. We demonstrate to application of the MagOD system on two types of magneto-tactic bacteria. Magnetospirillum bacteria (MSR-1) are elongated and have very different scattering properties depending on the direction of the incident light. Figure 1 shows that there is a clear change in transmitted light when the magnetic field is rotated from parallel to perpendicular to the light path. The signal difference (red lines) is a measure for the fraction of magnetic bacteria in the culture. Since the MagOD meter measures at data acquisition rates up to 800 Hz, we can also time-resolve the rotation of the bacteria (blue lines). The time constant for rotation is a measure for the ratio between bacteria length and their magnetic moment. Unlike MSR-1, which swim along the magnetic field lines but reverse frequently in direction, Magnetococcus bacteria (MC-1) swim in one direction only. This allows us to perform marathon experiments, as shown in figure 2. First, the bacteria are collected at the bottom of the container by a vertical magnetic field. After reversal of the field, the entire groups swim up and passes the photodetector after some time. From the reduction in transmission, we can obtain the distribution in swimming velocity. These are just two examples of the wealth of information one can obtain with such an inexpensive system. Not all possibilities have been explored yet. Next to magneto-tactic bacteria, also suspensions of magnetic nanoparticles can be analyzed with respect to sedimentation and clustering. Since the LED used for the light beam has three different wavelengths, which can be individually tuned in intensity, simple spectral analysis methods can be applied. Moreover next to transmitted light also the scattered light can be detected. Since the housing is 3D printed, other geometries can be easily realized. By making the source code available, we hope that researchers in other fields will make use of and expand on our efforts.
